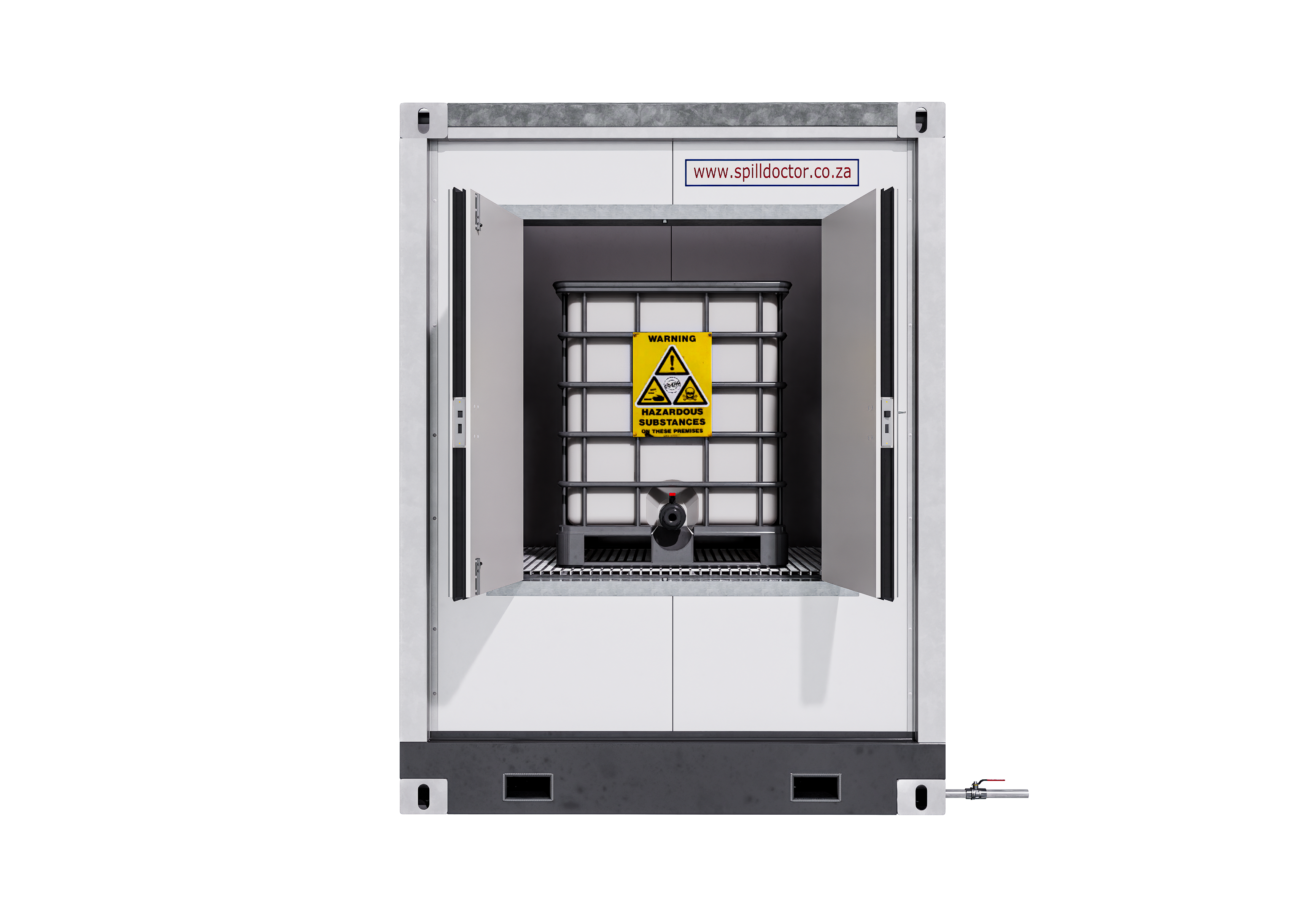

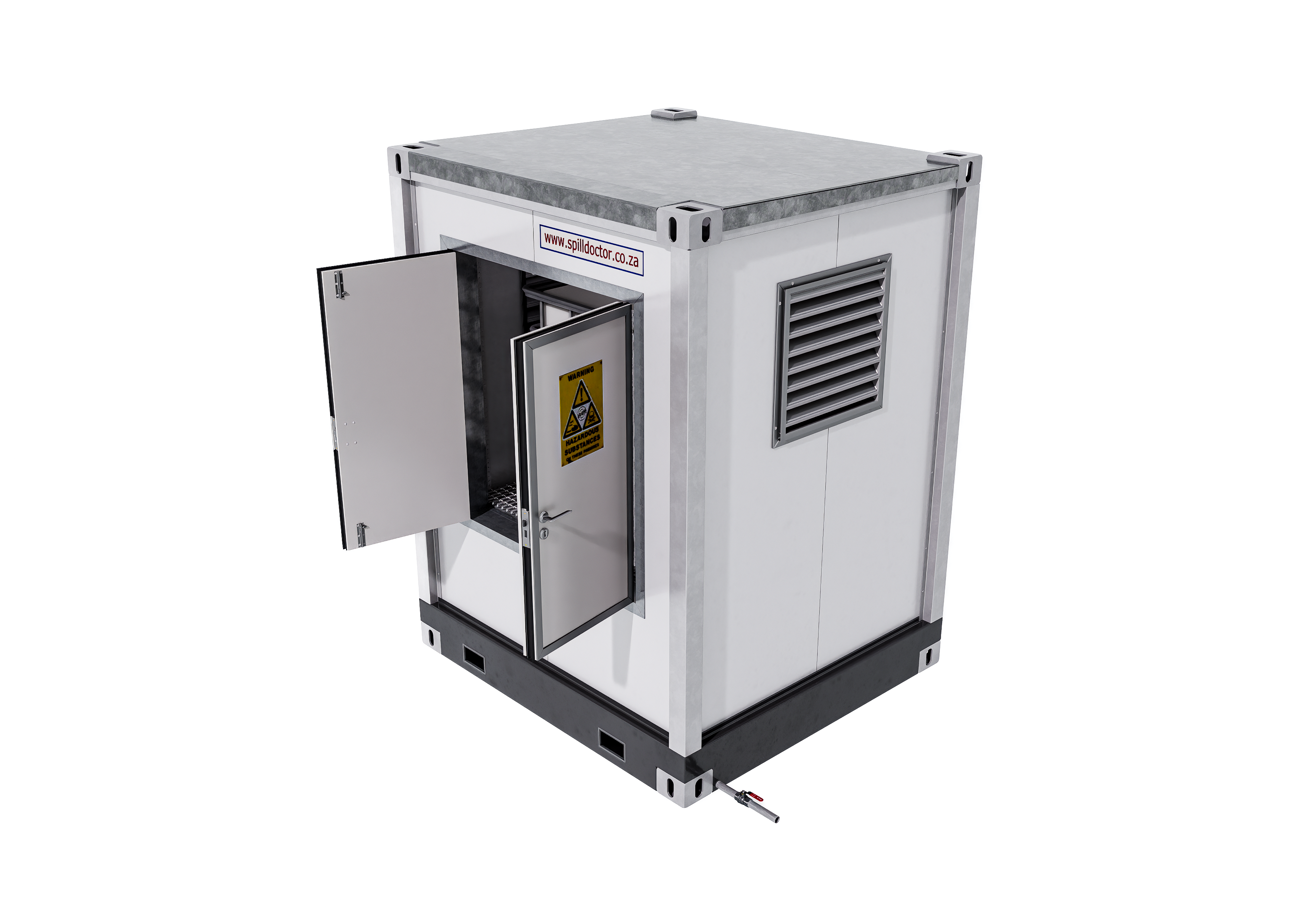

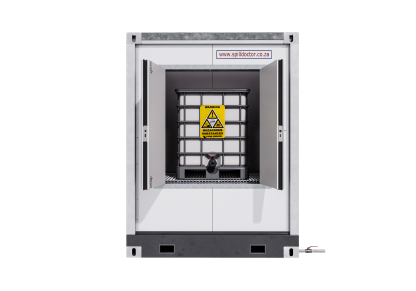

SD4(1) – Non-Combustible Steel Store (1 IBC)



Backed by our 20 year structural guarantee (details available on request). The base is manufactured from 3mm mild steel sheet with RHS cross members and pressed ribs. All corner posts, main rails and cross members from rolled hollow section. The back, sides and door panels are pressed from 2mm mild steel sheet corrugated where required. The roof is pressed and fitted with suitable bracing and fully welded around perimeter. The unit is fitted with double, steel hinged doors, high and low level louvre vents and galvanised grid mesh above the fully seam welded sump which is further fitted with base plinths to eliminate contact with the ground, while the units sloping roof is fitted with crane lifting points and the unit is shot blasted before being painted.
Note: This unit will be delivered by an articulated vehicle, therefore please ensure that a vehicle of this size can access your premises before ordering and advise us accordingly.

CALL or EMAIL us for the price

Download Data Sheet

SD4(1) – Non-Combustible Steel Store (1 IBC)

Additional information

Weight 560 kg
Dimensions 150 × 140 × 241.4 cm
