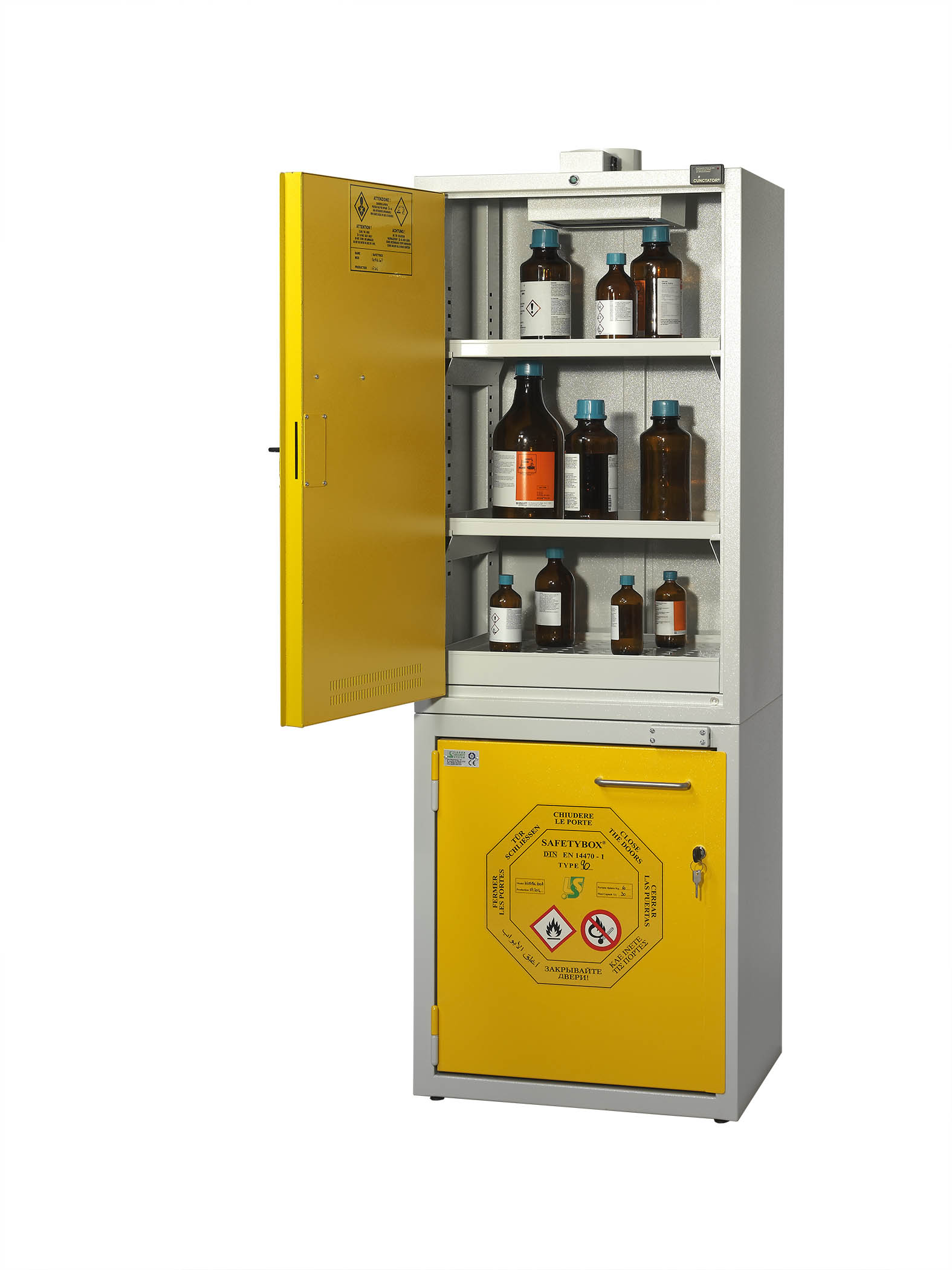

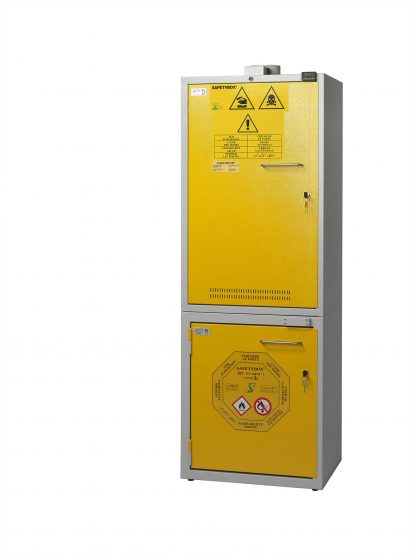

KEMFIRE600A – Combined Chemical/Flammables Cabinet

R104,760.00 Excluding VAT and Delivery


Aspirated and filtered safety cabinet for the combined storage of chemicals, acids and base, and solid and liquid flammables.
Certified according to EN 14470-1, En 61010-1, EN 16121, EN 16122
Completely produced in pickled and electrogalvanized steel 10/10 mm painted with epoxy acid-proof powders electrostatically applied through thermic tunnel at 200°C. External monolithic construction completely sealed. New building method with double cases, internal and external. Grounding connection to discharge build-up of static electricity. Levelling feet

2 shelves adjustable in height (2 for each compartment) made of electrogalvanized steel painted with epoxy acid-proof powders. Tray-shaped shelves to collect any liquid spillage of breakages. Removable and adjustable shelves with anti-falling security lock by rack. Collection capacity of the shelf approx. 7 litres. Loading capacity kg. 40/100. Watertight bottom basins in electrogalvanized steel painted with epoxy anti-acid powders. Capacity approx. 13 litres. Doors opening to 180° to allow an easy extraction of the shelves without tilting them. Acid-proof hidden hinges. Activated charcoal filter Carbox® positioned inside the cabinet, easy to replace.
Thermically protected electro aspirator IMQ IPX4 made of class V0 polymer to grant the highest level of self-extinguishing, in compliance with EN 60335-1, EN 60335-2-80 and EN 50366 norms. ON/OFF lamp.

Fire test carried out in accredited laboratories according to EN 1363-1 and UNI EN 1363-1. New fireproof insulation made of highly fire-resistant material, completely ecological. Internal body panels made of anti-scratch material, resistant to corrosive products. Inflatable trimming 8 + 6 cm (DIN 4102), that swells in case of fire, isolating the inside of the cabinet from the outside. Extra inflatable trimming with protection against “Cold and Hot fumes” and dusts. Self –closing doors with automatic return. Safety closing system: in case of fire, automatically closes the door at a temperature of >50°C. Not electric. Watertight sump in electrogalvanized steel painted with epoxy anti-acid powders, with drilled shelf. Collection capacity approx. 9 litres. Loading capacity kg. 80. Natural internal ventilation system for vapours, equipped with two certified security valves for air recycling with automatic closure at 70 ± 10° C. The valves are positioned at the top and at the bottom of the rear wall of the cabinet to grant the release of substances. External connection collar Ø 100 mm. Safety catch “Ignis-lock®” that keeps the doors closed in case of fire. Anti-spark hinges.

Data Sheet Download

KEMFIRE600A – Combined Chemical/Flammables Cabinet

Additional information

Weight 185 kg
Dimensions 595 × 510 × 1670 cm
